Shattuck, C.S.

Name Street Town State From To
Shattuck, C.S.   Springfield Massachusetts 1875 1877
Shattuck, C.S.   Hatfield Massachusetts 1877 1910s


Patent Date Remarks



Contract for



Product
Trademark:
Unique (revolver)
Champion or American Champion (shutgun)
Shattuck's Perfection or American Shattuck's Perfection (shotgun)

See Hyde & Shattuck

Shattuck Arms Co. respectively C. S. Shattuck Arms Co.

Major Charles S. Shattuck and Andrew Hyde made first guns in Springfield. The factory was the former Prescott Pistol Co., for which Shattuck worked previously. They moved their activities to Hatfield in February 1877. There they went into partnership with Mrs. Mary D. Porter in the Thomas Meekin sawmill, Prospect Stret, Hatfield. Former Crescent Pistol Co., established in 1874. Mrs Porter withdraw her partnership already in 1878.

Shattuck and Hyde continued their business of inexpensive handguns. Hyde was bought out in 1880. Shortly later he came out with his single barrel breech-loading shotguns and a few years later he offered double shotguns. Production of shotguns was so about 15.000/year.

In 1881 the shop burned but was immediately rebuilt. In 1910 the manufacture of guns stopped. In 1910 a four-shot gun turned out but it is unknown for how long.

.22 r.f. caliber, single action revolver, spur trigger, swing-out cylinder

.32 r.f. caliber, 5 shot, single action revolver, spur trigger, 2 13/16" octagonal barrel, swing-out cylinder, barrel marked on the left side C.S.SHATTUCK-HATFIELD MASS. and on the left frame PAT. NOV.4 1879

left side
right side

.38 r.f. caliber, double action revolver, spur trigger, swing-out cylinder

.41 r.f. caliber, double action revolver, spur trigger, swing-out cylinder

Shotguns

Shattuck made single and double barrel shotguns with and without hammer. At least Andrew Fyrberg's patent no 498,427, May 1893 was used.

Known is their American Trigger Action model which were odd looking and heavy. It might be of interest that Oscar F. Mossberg was one of Shattuck's employees. Mossberg was founder of O.F. Mossberg & Sons in 1919.


Champion or American Champion

Shattuck's Perfection ro American Shattuck's Perfection


Side Hammer Model

10 and 12 gauge, 30" or 32" twist or steel barel, made from 1878 to 1886


Old Model Side Snap

12 or 16 gauge, 30" or 32" twist or steel barrel, made from 1880 to 1890


American Trigger Action model, made from 1880 to 1904. At least 961 guns were manufactured.
8, 10 or 12 gauge, 28", 30", 32", 34", 36" or 40" twist barrel, made with and without forend. Weight was overe 13 pounds. Therefore this gun is also called "Punt Gun".

Year   Serial Number Range (estimation)
1880     01 to   40
1881     41 to   80
1882     81 to 120
1883   121 to 160
1884   161 to 200
1885   201 to 240
1886   241 to 280
1887   281 to 320
1888   321 to 360
1889   361 to 400
1890   401 to 440
1891   441 to 480
1892   481 to 520
1893   521 to 560
1894   561 to 600
1895   601 to 640
1896   641 to 680
1897   681 to 720
1898   721 to 760
1899   761 to 800
1900   801 to 840
1901   841 to 880
1902   881 to 920
1903   921 to 960
1904   961 to ?


Ring Trigger Opening Model

12 or 16 gauge, 30" or 32" twist or steel barrel, made from 1890 to 1909


Hammerless Single Barrel

12 or 16 gauge, 30" steel barrel, made from 1887 to 1909

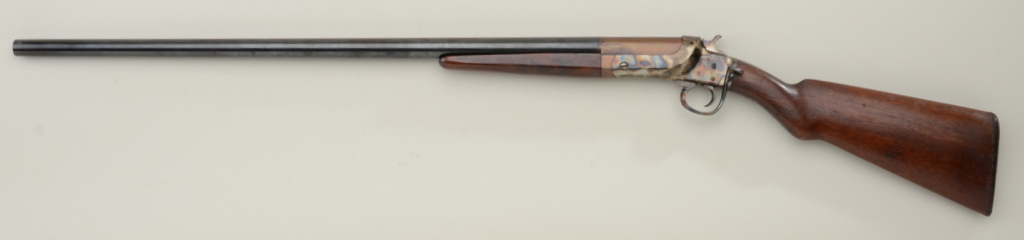

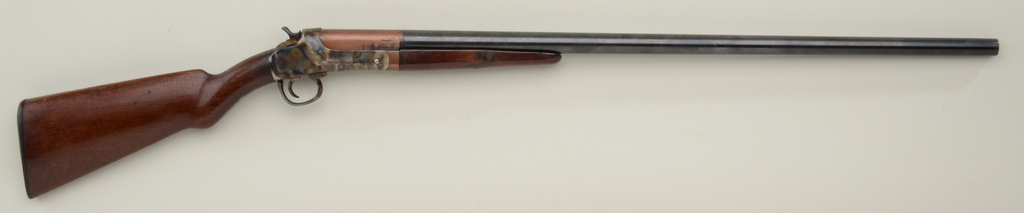

New Model Side Snap

12 gauge, 30" twist or steel barrel, made from 1890 to 1909

left side
right side


Hammerless Double

12 gauge, 28", 30" or 32" twist or steel barrels, made from 1903 to 1909


Markings on observed specimens

C.S. Shattuck, Hattfield, Mass. American
London Twist-American
C.S. Shattuck, Hatfield, Mass
Hyde & Shattuck Springfield, Mass
Leager
Perfection C.S. Shattuck with Pat'd Jan. 5, 1897
